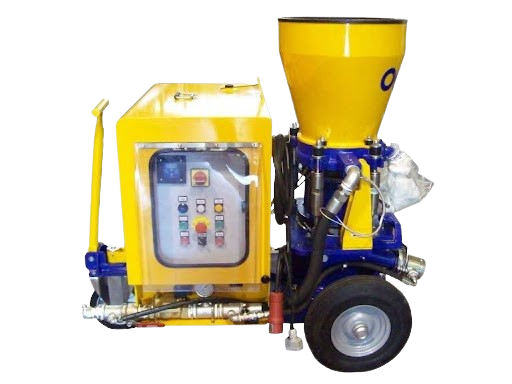

OCM 016 Simplex
Rotor Machine
Main features
- Four points manual clamping system of the rotor
- Reduced size and weight
- Easy to use
-
Lubricated sealing gasket
- Wide range of rotors’ capacity and hose’s sections
- Robust and reliable
- Disponibile anche in versione completamente pneumatica e DOSA
ROTOR MACHINE FOR THE DRY SPRAYING OF NOR FORMED REFRACTORY MASSES
Widely used for the ordinary and extraordinary maintenance of furnaces, ladles and chimneys, the OCMER OCM-016 SIMPLEX is a machine for the dry spraying of refractory masses, robust, simple to use, small in size and weight and easy to manoeuvre.
The five rotors of different sizes and the three sections of piping with which it can be equipped make it extremely versatile.
Equipped with automatically and continuously lubricated sealing gaskets, it can on request be supplied complete with remote control, high pressure water pump, digital litres counter, peristaltic dosing unit for liquid admixtures.
Weights 480-520 Kg
(* PROVIDED THE CHAMBERS FILL AND EMPTY COMPLETELY)
Electric Drive
-
Installed power: from 3.5 to 5.5 Kw (varies depending on the options required), 3 x 400 V 50/60 Hz (other voltages on request)
-
Effective flow rate: 0.3 to 4 M3/h
-
Compressed air consumption: from 5,000 to 10,000 litres/m at 7-8 bars
- Electrical panel compliant with: CEE (EN-60204-1; EN-60439-1; 73/23/EEC; 93/68/EEC)
- Degree of protection: IP 55
Pneumatic Drive
-
Main engine: KW 6,6
-
Hydraulic power unit motor power: KW 2.96
-
Air consumption: 9.000 litres/m at 7-8 bars
